Modell: Robalon® FG PE
Marke: Robalon
Verkaufseinheiten | : | Kilogram |
Pakettyp | : | Exportpaket |

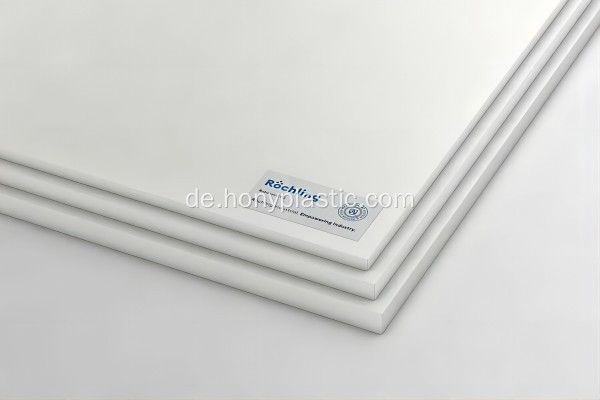

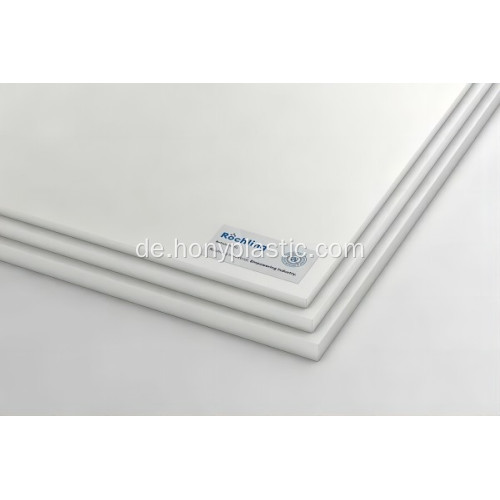

Robalon® FG PE - PE -UHMW - PE 1000
Farbe weiß. Keine Molybdän-Disulfidlegierung, keine Vernetzung. Physiologisch sicher. Unser Kunststoff entspricht den Anforderungen der EU-Regulation 10/12/EU, die seit Mai 2011 gültig ist . Natürlich unterliegen unsere Herstellungsprozesse der Philosophie "Good Manufacturing Practice" (2023/2006/EG).
Eigenschaften
Physiologisch sicher
Gutes Rutschen und Verhaltensverhalten
Lebensmittelkonform nach 10/2011/EU, 1935/2004/EC, FDA
Branchen
Trink- und Abwassertechnologie
Maschinenbauindustrie
Nahrungsmittelindustrie
Landwirtschaftsbranche
Alpine Industrie
Technische Spezifikationen Robalon® FG
General properties | |||
Test Method | Unit | Guideline Value | |
Density | DIN EN ISO 1183-1 | g / cm3 | 0,93 |
Water absorption | DIN EN ISO 62 | % | <0,01 |
Flammability (Thickness 3 mm / 6 mm) | UL 94 | HB/HB | |
Molecular weight | g/mol | 9,20 * 106 | |
Color | white | ||
Mechanical properties | |||
Test Method | Unit | Guideline Value | |
Yield stress | DIN EN ISO 527 | MPa | 17 |
Elongation at break | DIN EN ISO 527 | % | >300 |
Tensile modulus of elasticity | DIN EN ISO 527 | MPa | 470 |
Notched impact strength | DIN EN ISO 179/1eA | kJ / m2 | >100 |
Shore hardness | DIN EN ISO 868 / 15 sec | scale D | 63 |
Compression - compression set | 23°C, 2N/mm², 1h | % | ∼2 |
Compression - compression set | 80°C, 10N/mm², 56h | % | ∼20 |
Thermal properties | |||
Test Method | Unit | Guideline Value | |
Melting temperature | DIN EN ISO 3146 | 掳C | 135 |
Thermal conductivity | DIN EN ISO 8302 | W / (m * K) | 0,41 |
Thermal capacity | DIN 51005 | kJ / (kg * K) | 1,84 |
Coefficient of linear thermal expansion | DIN 53752 | 10-6/ K | 200 |
Service temperature, long term | Average | ℃ | -200 ... 80 |
Service temperature, short term (max.) | Average | ℃ | 110 |
Electrical properties | |||
Test Method | Unit | Guideline Value | |
Dielectric constant | IEC 60250 | 2,1 ... 3 | |
Dielectric dissipation factor (106聽Hz) | IEC 60250 | 10 * 10-4 | |
Dielectric dissipation factor (100 Hz) | IEC 60250 | 3,9 * 10-4 | |
Volume resistivity | DIN EN 62631-3-1 | Ohm * cm | 1012 |
Surface resistivity | DIN EN 62631-3-2 | Ohm | 1012 |
Comparative tracking index | IEC 60112 | 600 | |
Dielectric strength | IEC 60243 | kV / mm | 45 |
