Modell: HONY-Bakelite
Marke: Hony
Verkaufseinheiten | : | Kilogram |
Pakettyp | : | Exportpaket |

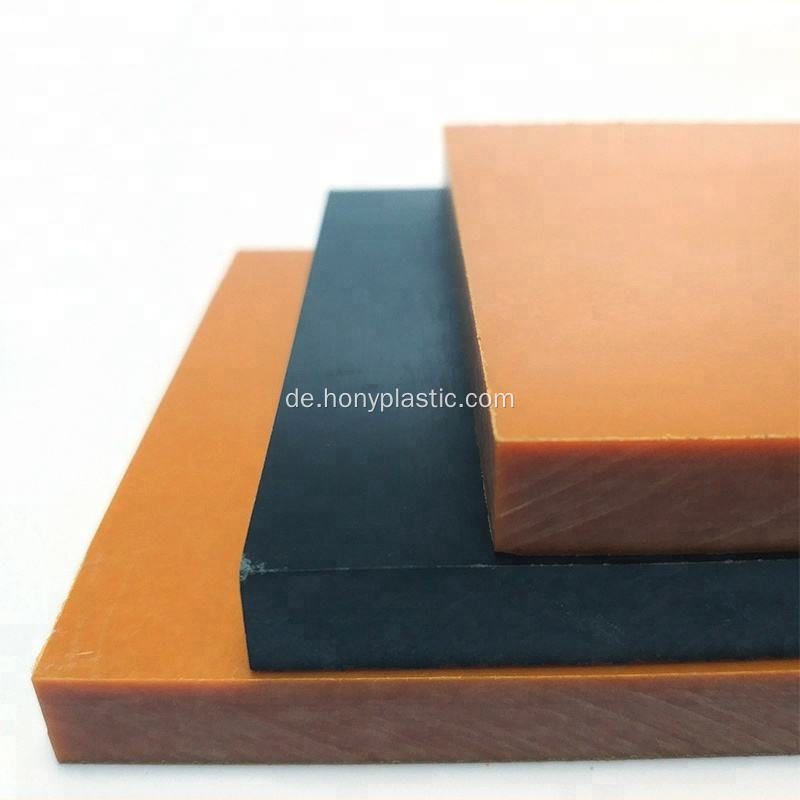

HONY ® Phenoles Bakelitblatt wird durch Auftragen von Wärme und Druck auf phenolische Harz imprägniert gebleichtes Holzzellstoffpapier oder nicht gebleichtes imprägniertes Papier hergestellt. Diese Art von industriellem Laminiert ist für Isolierkomponenten für Elektromotor und elektronische Geräte ausgelegt, die eine höhere mechanische Festigkeit erfordern. Es besitzt hervorragende elektrische, mechanische Eigenschaften. Phenol Baumwolltuch-Laminatstange, mit Phenolharz imprägniertes Baumwolltuch und sie unter Hitze und Druck in Rundformform laminieren. Auch als Thermoset kennen. Bieten Sie eine hohe elektrische und mechanische Leistung an, einschließlich guter elektrischer Isoliereigenschaften, hoher Feuchtigkeitsbeständigkeit, guter Dimesstabilität, viel besserer Bearbeitbarkeit als andere Phenolika.
Thickness(mm)
|
Width*Length(mm)
|
||
3-100mm
|
1000*2000mm, 1220*2440mm
|
Name : Bakelitblech Bakelitblechplatte
Zu den Farben gehören : Orange, schwarz
Typen : Blätter
Type | Insulation board |
Color | Orange, yellow, black |
Thickness | 1mm-60mm |
Density | 1.45-1.5g/cm3 |
Tolerance of thickness | ±0.1 |
Warping degree | ≤3‰ |
Adhesive strength | 3600N |
Size | 1000X2000mm or customers' requirements |
Product Characteristics |
(1) Non-absorbent, non-conductive (2) High strength , good insulation properties (3) Wear-resisting and thermostable characteristic (4) Excellent electrical, mechanical and processing properties |
Applications |
(1)Chemical machinery parts, general machinery parts |
Laminat Bakelite Blatt Technische Parameter:
Properties | Unit | Index Value |
Flexural strength perpendicular to laminations | MPa | ≥120 |
Bonding strength (≥10mm in thickness) | N | ≥3200 |
Impact Strength | KJ/m2 | ≥15 |
Tensile strength | Mpa | ≥100 |
Insulation resistance after immersion in water (D-24/23) | Ω | ≥1.0×107 |
Dielectric strength perpendicular to laminations (in 90±5°C transformer oil, 1 mm in thickness) | MV/m | ≥ 84 |
Breakdown voltage parallel to laminations(in 20±5°C transformer oil) | KV | ≥ 20 |
Permittivity (50Hz) | — | — |
Permittivity (1MHz) | — | ≤5.5 |
Dissipation factor (50Hz) | — | ≤ |
Dissipation factor (1MHz) | — | ≤0.05 |
Density | g/cm3 | 1.30-1.45 |
Water absorption (D-24/23, 1.6mm in tickness) | mg | ≤182 |
