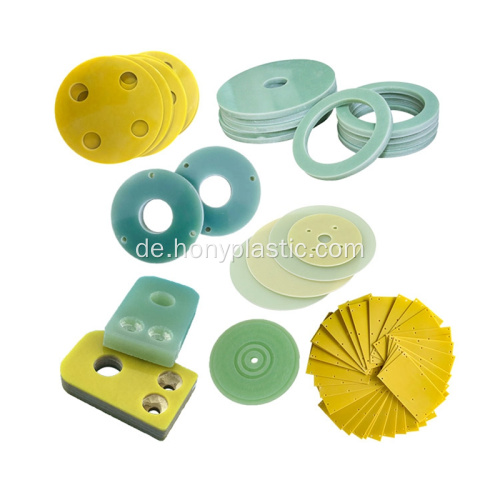

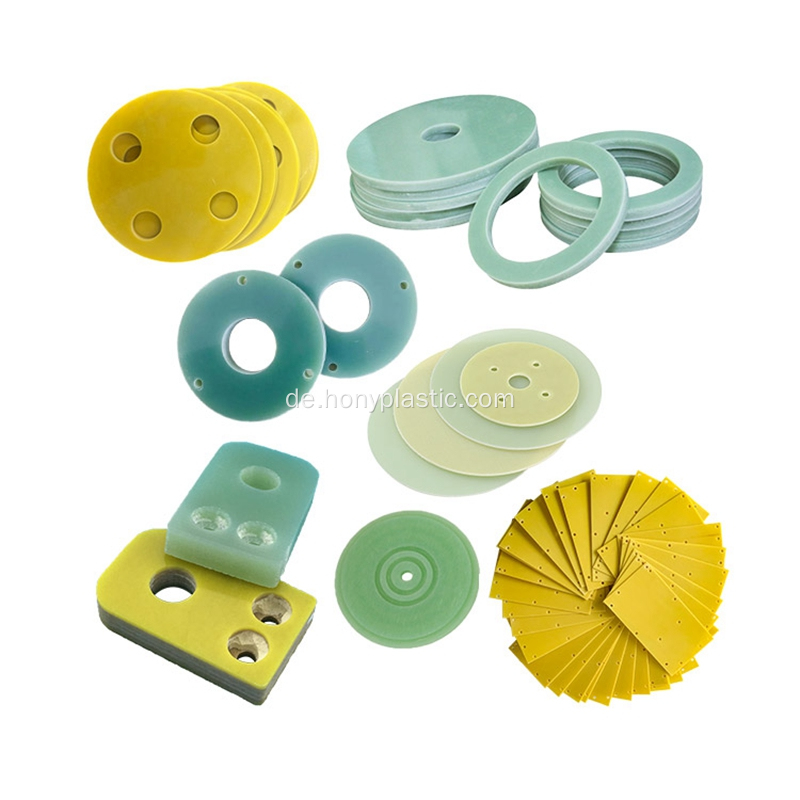

FR4 -Epoxidharz -Laminatblech für Dichtungen
Holen Sie sich aktuelle PreisZahlungsart: | T/T,Paypal |
Incoterm: | FOB,CFR,CIF,EXW,DDU |
Minimum der Bestellmenge: | 1 Piece/Pieces |
Transport: | Ocean,Land,Air,Express,Others |
Hafen: | Shenzhen,Guangzhou,Hongkong |
Zahlungsart: | T/T,Paypal |
Incoterm: | FOB,CFR,CIF,EXW,DDU |
Minimum der Bestellmenge: | 1 Piece/Pieces |
Transport: | Ocean,Land,Air,Express,Others |
Hafen: | Shenzhen,Guangzhou,Hongkong |
Modell: HONYFR4-Washer
Marke: Hony
Verkaufseinheiten | : | Piece/Pieces |
Pakettyp | : | Exportkarton |

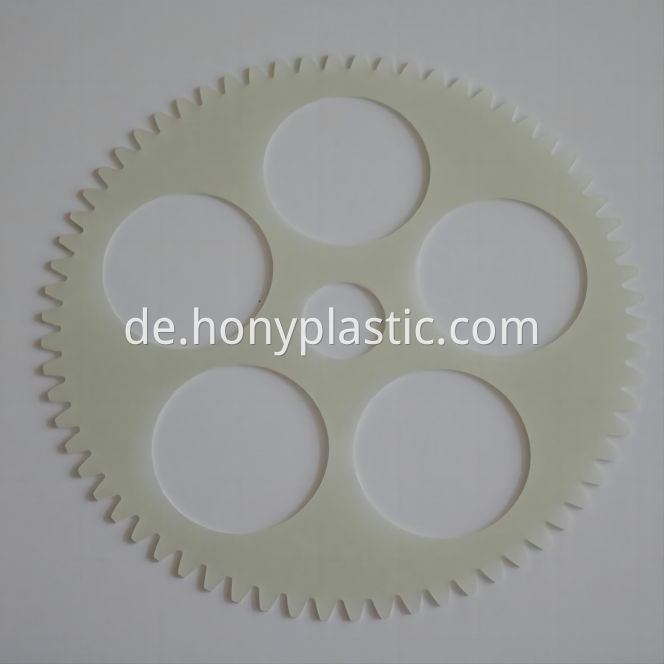

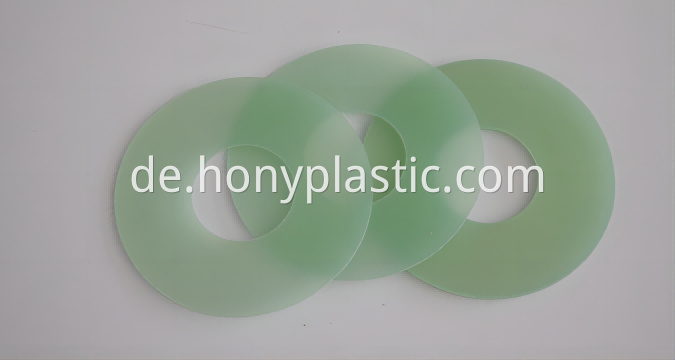

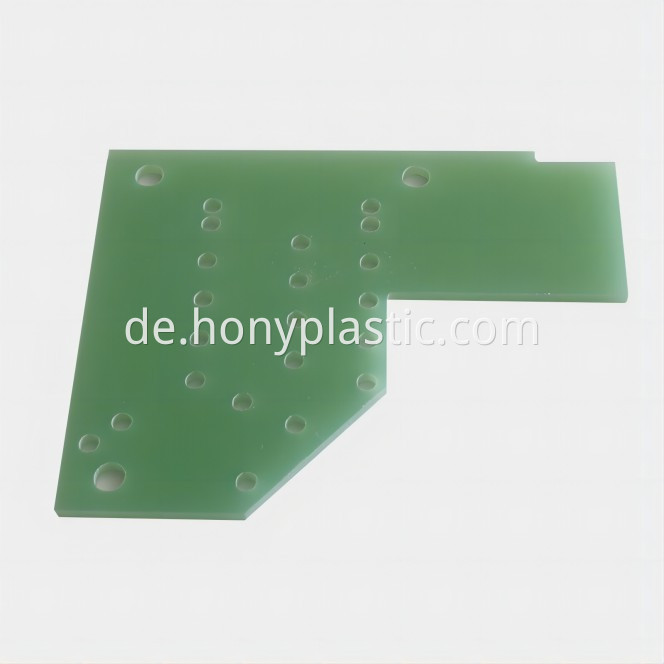

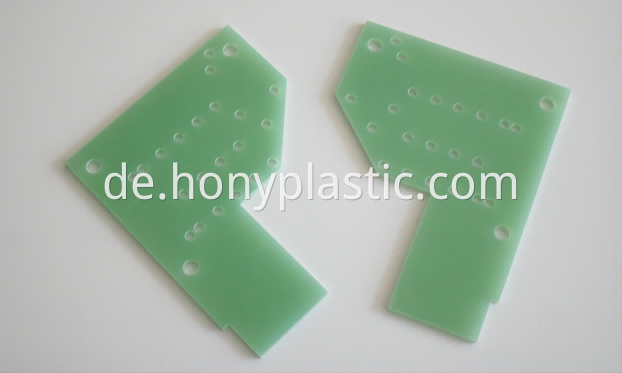

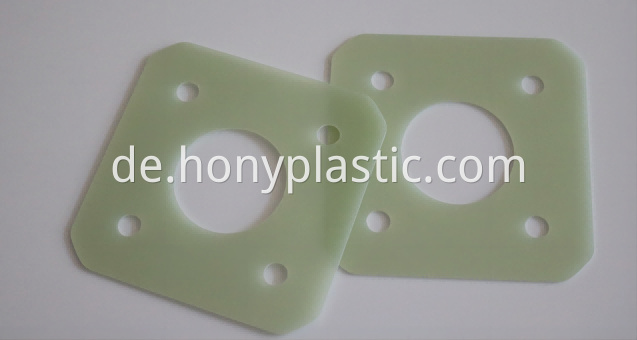

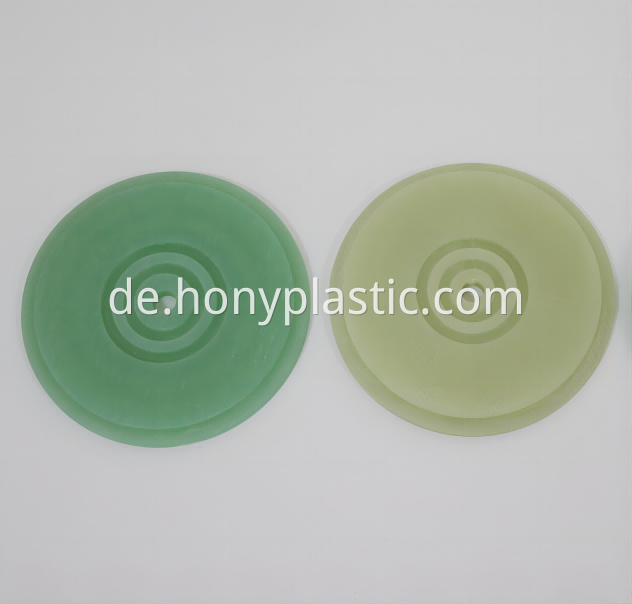

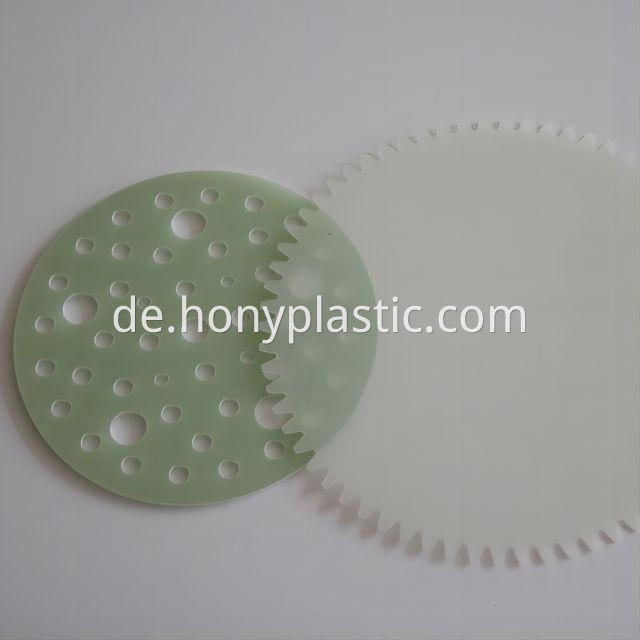

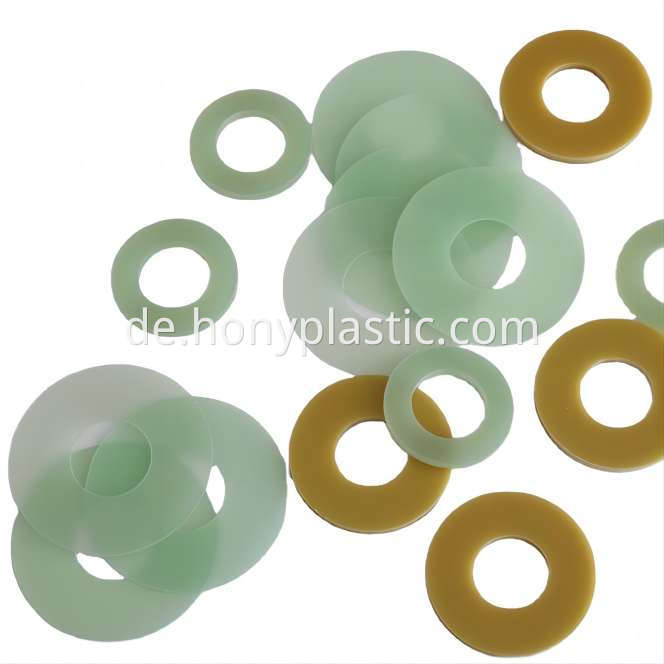

Kunde FR4/G10-Isolationsdichtung Micarta FR4 G10 Epoxy Faserglas ist Epoxyblech, auch als Isolierfilm, Glasfaserblatt und Epoxyblech bekannt. Es besteht aus alkalifreiem Glas-Tuch, das mit Epoxidhöfen unter Wärme und Druck imprägniert ist. Es besitzt den Charakter-Hochtemperaturwiderstand, hohe Intensität, Flammschutzmittel, UL94-V0, hohe mechanische Eigenschaften und dielektrische Eigenschaften, gute Wärmewiderstand, gute Glätte usw.
Produkttyp: Epoxidfaserlaminatfilm
Material: Flammhemmende Epoxidharz + Glasfasergewebe
Haupteigenschaften
1) Flammenhemmung.
2) Hochspannungswiderstand.
3) Feuchtigkeitsbeständigkeit.
4) Wärmefestigkeit.
5) Temperaturwiderstand: 150-180
6) Gute Flachheit, glatte Oberfläche, keine Gruben.
Anwendung
In mechanischen, elektrischen und elektronischen Hochdämmstrukturteilen
Verwendet in elektrischen Isolieranforderungen.
Chemische Maschinenteile
Allgemeine Maschinenteile und Zahnrad, Generatoren, Pads, Basis, Schale
Generator, Transformator, Lampe, Wechselrichter, Motor.
Item
|
Value
|
||
Specific gravity
|
G/cm & sup3;
|
1,70 ~ 1,90
|
|
° C
|
155
|
||
Bending strength min
|
Longitudinal
|
MPA 343,2
|
|
Cross
|
MPA 284,4
|
||
Tensile strength min
|
Longitudinal
|
MPA 294,2
|
|
Cross
|
KJ/sqm 147,1
KJ/sqm 98,1 |
||
Impact resistance min
|
Cross
Longitudinal |
KJ/sqm 147,1
KJ/sqm 98,1 |
|
Surface resistance min
|
Under normal condition
After immersion in water |
Ohm
|
Ω 1x1013
Ω 1x1011 |
Volume resistance min
|
Under normal condition
After immersion in water |
Ohm cm
|
Ω cm 1x1013
Ω cm 1x1011 |
Insulation Resistance parallel
To laminate ionmin |
Under normal condition
After immersion in water |
Ohm
|
Ω 1x1010
Ω 1x108 |
Dielectric loss Max
|
50Hz
|
KV/mm 0,05
|
|
Impact strength
Perpendicular to sheets (At 90 ± 2 ° C in transformer oil) Min |
Thick 0,5 ~ 1mm
|
KV/mm 22,0
|
|
Thick 0,5 ~ 1mm
|
KV/mm 20,0
|
||
Thick 0,5 ~ 1mm
|
KV/mm 18,0
|
||
Leaf with thick more than 3mm will be edited up to 3mm from one side
|
KV/mm 18,0
|
||
Breakdown voltage parallel to sheets
(At 90 ± 2 ° C in transformer oil) |
Min
|
KV
|
30,0
|
FR-4 Faserglas Plastiklaminierter Isolierplatte, Plastikfaserglas
1) FR-4-Epoxidglasgewebe waren die laminierten Plattenprodukte, die speziellen elektronischen Materialien wie Stoff, die in Epoxidphenolharz durch Hochtemperatur & #12289 getaucht wurden; Hochdruck und heißes Pressen.
2) Wärmequalität: Klasse B.
3) Dicke: 0,2-50 mm
4) Größe: Breite/Länge (mm) 1020*2040 mm, 1020*1200 mm
5) Farbe: grün/schwarz
