GPO-3-Blatt Red GPO3 Blatt
Holen Sie sich aktuelle PreisZahlungsart: | T/T,Paypal |
Incoterm: | FOB,CFR,CIF,EXW,DDU |
Minimum der Bestellmenge: | 1 Kilogram |
Transport: | Ocean,Land,Air,Express |
Hafen: | Shenzhen,Guangzhou,Hongkong |
Zahlungsart: | T/T,Paypal |
Incoterm: | FOB,CFR,CIF,EXW,DDU |
Minimum der Bestellmenge: | 1 Kilogram |
Transport: | Ocean,Land,Air,Express |
Hafen: | Shenzhen,Guangzhou,Hongkong |
Modell: HONY-GPO3
Marke: Hony
Verkaufseinheiten | : | Kilogram |
Pakettyp | : | Exportpaket |

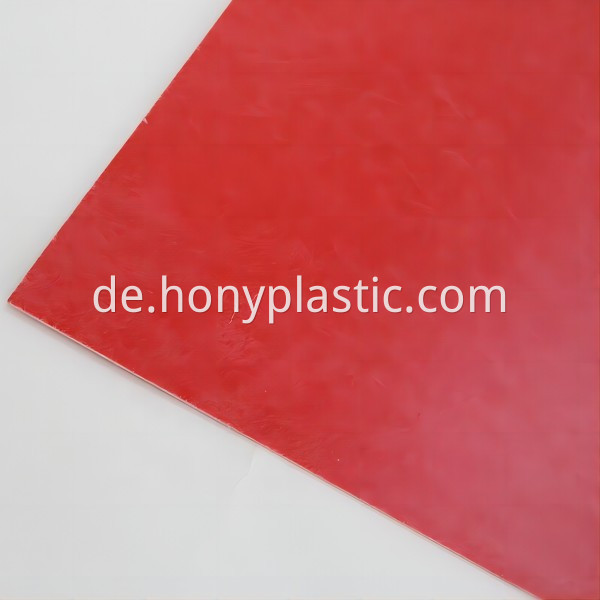

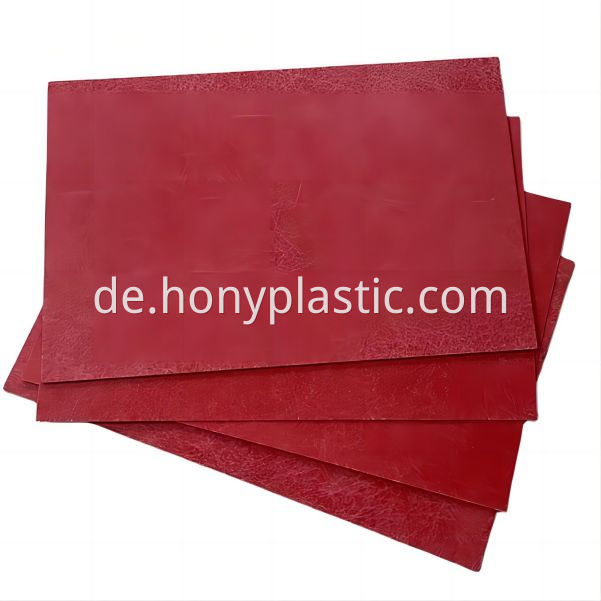

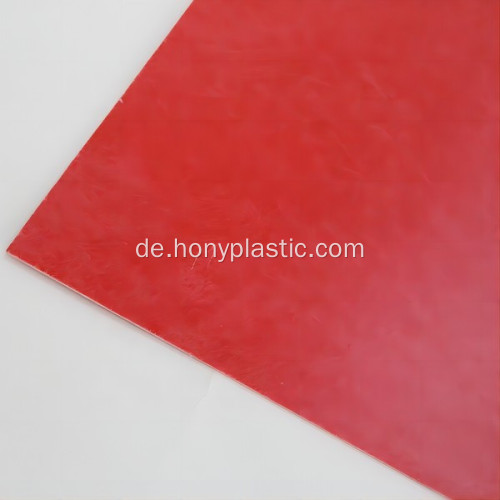

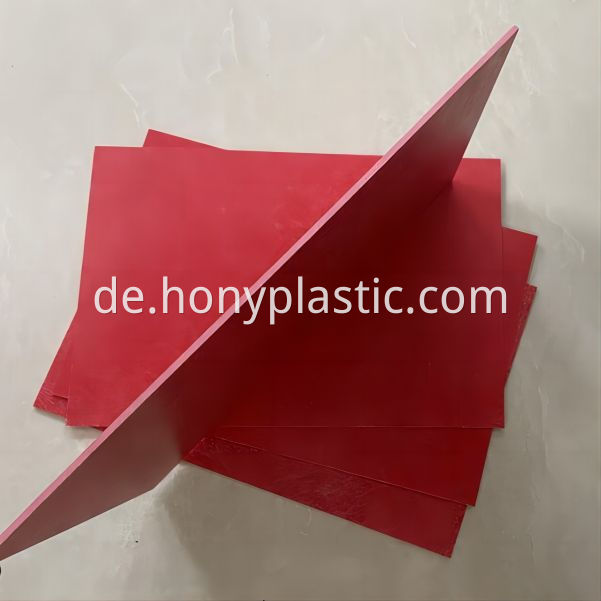

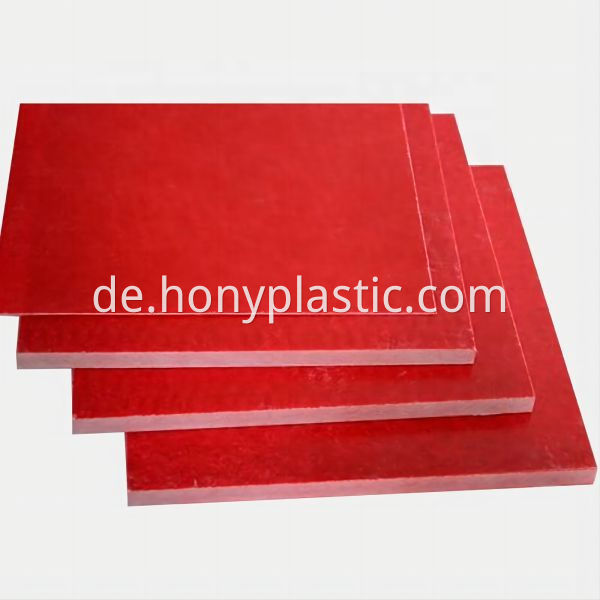

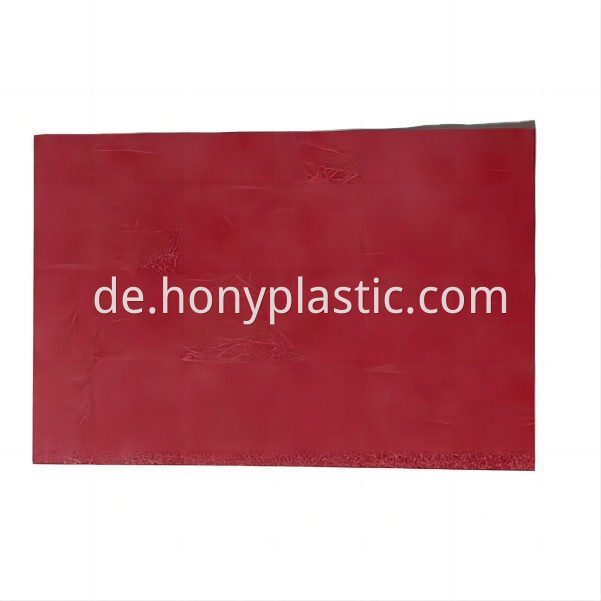

Flammbeständige GPO-3 ungesättigte Polyesterglasfasermattenlaminierte Blätter für explosionssichere Elektrogeräte, GP0-3-Platine besteht aus alkali-freier Glasfaszfilm-Filzblech mit ungesättigtem Polyesterharz. GPO-3 ist ein mit Glas verstärktes thermosetisches Polyesterblechmaterial. Das Material hat auch hervorragende elektrische Eigenschaften, einschließlich Flammen-, ARC- und Track -Widerstand.
Product Name
|
GPO-3 Sheet
|
Place of Origin
|
Guangdong China
|
Brand Name
|
HONY
|
Model Number
|
GPO-3
|
Thickness
|
0.5-80mm /can customize
|
Size
|
1020*1220mm/can customize
|
Temperature Resistance
|
Intermittent 250° /sustained 200°
|
Water Absortion
|
<0.2%
|
Bending Strength
|
≥340Mpa
|
Dencity
|
1.85g/cm3
|
Type
|
Insulation Sheet
|
Material
|
Unsaturated Polyester Resin + Glass Mat
|
Application
|
High Voltage
|
Rated Voltage
|
≥60kv
|
Tensile Strength
|
≥250Mpa
|
Certification
|
ISO9001 ISO14001 QC080000
|
Schlüsseleigenschaften
Hohe Festigkeit
Hohe Steifheit
Ausgezeichnete elektrische Eigenschaften
Hoher Bogen- und Kohlenstoffspurfestigkeit
Flammenschutz
Gute Flamme und Raucheigenschaften
Ausgezeichnete dimensionale Stabilität
Hervorragende Schlagkraft
Einschränkungen
Schwer zu maschinell
Anwendungen
Endbarrieren
Isolierträger
Bushals
Montagetafeln
Getriebekomponenten schalten
Strukturelle elektrische Komponenten
Verfügbare Größen
Blechdicke - 0,031 bis 2.000 Zoll dick
W x l - 36.000 x 72.000 Zoll und 48.000 x 96.000 Zoll
Benutzerdefinierte Schnittgrößen erhältlich mit Boedeker Cut bis Größe Service
Kontaktieren Sie uns für benutzerdefinierte Größen mit Ihren Anforderungen.
Typische Eigenschaften von GPO-3-Glas-Polyester-Laminat
DETAIL | |
Description | Value |
Material Type | Thermoset Composite |
Chemical Name | Polyester Glass Laminate |
Additives | Fiberglass |
Color | Red |
PHYSICAL | |||
Property | Test | Unit of Measure | Value |
Density | ASTM D792 | g/cm³ | 1.8 |
ASTM D792 | lb/in³ | 0.065 | |
Water Absorption, 24 hrs, Immersion | ASTM D570 | % by wt. | 0.2 |
MECHANICAL | |||
Property | Test | Unit of Measure | Value |
Tensile Strength | ASTM D638 | psi | 9000 |
Flexural Strength | ASTM D790 | psi | 18000 |
Flexural Modulus | ASTM D790 | psi | 1500000 |
Compressive Strength | ASTM D695 | psi | 30000 |
Hardness | ASTM D785 | Barcol | 62 Barcol |
IZOD Impact-Notched | ASTM D256 | ft-lb/in | 8 |
THERMAL | |||
Property | Test | Unit of Measure | Value |
Coefficient of Linear Thermal Expansion | ASTM D696 | x 10-5 in./in./℉ | 2 |
Max Continuous Operating Temp | ℃ | 160 | |
℉ | 320 | ||
Flammability Rating | UL94 | NA | V-0 |
ELECTRICAL | |||
Property | Test | Unit of Measure | Value |
Dielectric Strength | ASTM D149 | V/mil - Short Time in Oil 1/16", VPM | 450 |
Dissipation Factor at 1 MHz | ASTM D150 | 60Hz | 0.06 |
COMPLIANCE | |
Description | Value |
USDA | No |
NSF | No |
3-A Dairy | No |
Canadian Food Inspection Agency | No |
USP Class VI | No |
OTHER | |
Description | Value |
MIL SPEC | Mil-I-24768/6 |
