Schatten:

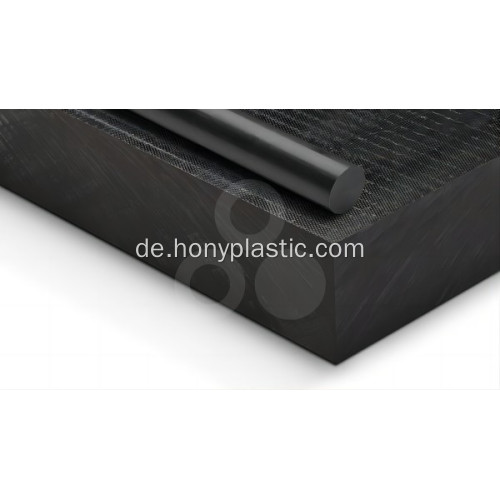

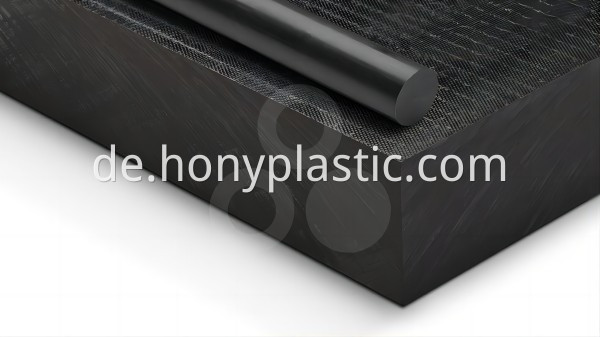

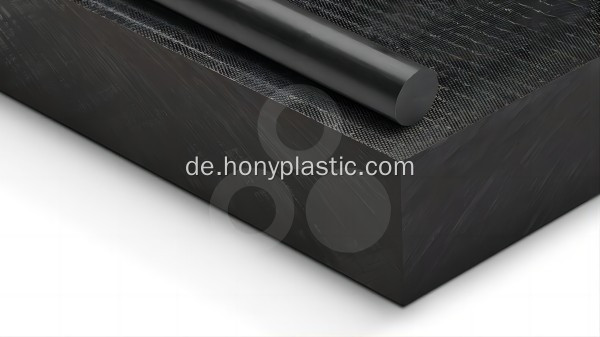

Modell: TECAPET® black PET POLYESTER
Marke: Tecapet
| Verkaufseinheiten | : | Kilogram |
| Pakettyp | : | Exportpaket |
The file is encrypted. Please fill in the following information to continue accessing it
Tecapet Black Pet ist die schwarz pigmentierte Version unseres Standard -PET -Polyester. In Ensersinges Tecapet Pet ist unter anderem auch für verbesserte Bearbeitungseigenschaften konzipiert. Darüber hinaus bietet PET Black aufgrund der schwarzen Färbung auch einen verbesserten UV -Schutz für Anwendungen für externe Verwendung.
FAKTEN
Chemische Bezeichnung
PET (Polyethylen Terephthalat)
Farbe
Schwarz
Dichte
1,38 g/cm3
HAUPTEIGENSCHAFTEN
Sehr guter chemischer Widerstand
Widerstand gegen Reinigungsmittel
Hervorragende Verschleißeigenschaften
Hervorragende Festigkeit und Steifheit
Niedrige Feuchtigkeitsabsorption
Verbesserte Oberflächenhärte
Widerstand gegen hohe Energiestrahlung
Zielindustrie
Verpackungs- und Papiermaschinerie
Halbleitertechnologie
Druckmaschinen
Maschinenbau
Pharmaindustrie
TECHNISCHE DETAILS
| Mechanical properties | ||||
| MECHANICAL PROPERTIES | VALUE | UNIT | CONDITION | TEST METHOD |
| Coefficient of friction | 0.25 | % | Dynamic, 40 psi, 50 fpm | ASTM D 3702 |
| Coefficient of friction | 0.19 | % | Static | ASTM D 3702 |
| Wear rate | 210*10-10 | in3minftlbshr | Against Steel, 40 psi, 50 fpm | ASTM D 3702 |
| Rockwell hardness | 93 | - | @ 73 °F, M scale | ASTM D 785 |
| Impact strength (Izod) | 0.53 | ftlbsin | @ 73 °F | ASTM D 256 |
| Flexural strength | 16,000 | psi | @ 73 °F | ASTM D 790 |
| Modulus of elasticity | 470,000 | psi | @ 73 °F | ASTM D 790 |
| (flexural test) | ||||
| Elongation at break (tensile test) | 50 | % | @ 73 °F | ASTM D 638 |
| Modulus of elasticity | 485,000 | psi | ASTM D 638 | |
| (tensile test) | ||||
| Tensile strength at yield | 10,000 | psi | @ 73 °F | ASTM D 638 |
| Elongation at yield (tensile test) | 4 | % | @ 73 °F | ASTM D 638 |
| Rockwell hardness | 125 | - | @ 73 °F, R scale | ASTM D 785 |
| Compression strength | 3,600 | psi | @ 73 °F | ASTM D 695 |
| Compression strength | 14,000 | psi | @ 73 °F | ASTM D 695 |
| Compression modulus | 360,000 | psi | @ 73 °F | ASTM D 695 |
| Shore hardness | 85 | ASTM D 2240 | ||
| Thermal properties | ||||
| THERMAL PROPERTIES | VALUE | UNIT | CONDITION | TEST METHOD |
| Heat distortion temperature | 175 | F | @264 psi | ASTM D 648 |
| Thermal expansion (CLTE) | 3.9 | *10^-5 in/in / degre | ASTM D 696 | |
| Heat distortion temperature | 240 | F | @ 66 psi | ASTM D 648 |
| Thermal conductivity | 2.01 | BTU-in/hr-ft^2 - deg | - | |
| Melting temperature | 490 | F | ||
| Specific heat | 0.28 | butlbf | - | |
| Service temperature | 230 | F | Long Term | - |
| Service temperature | 320 | F | Intermittent | - |
| Electrical properties | ||||
| ELECTRICAL PROPERTIES | VALUE | UNIT | CONDITION | TEST METHOD |
| Dissipation factor | 0.02 | % | @ 60 Hz, 73 °F | ASTM D 150 |
| Dielectric constant | 3.4 | % | @ 60 Hz, 73 °F, 50% RH | ASTM D 150 |
| Dielectric strength | 400 | V/mil | ASTM D 149 | |
| volume resistance | 1015 | Ω*cm | ASTM D 257 | |
| Other properties | ||||
| OTHER PROPERTIES | VALUE | UNIT | CONDITION | TEST METHOD |
| Moisture absorption | 0.04 | % | @ 24 hrs, 73 °F | ASTM D 570 |
| Moisture absorption | 0.5 | % | @ saturation, 73 °F | ASTM D 570 |
