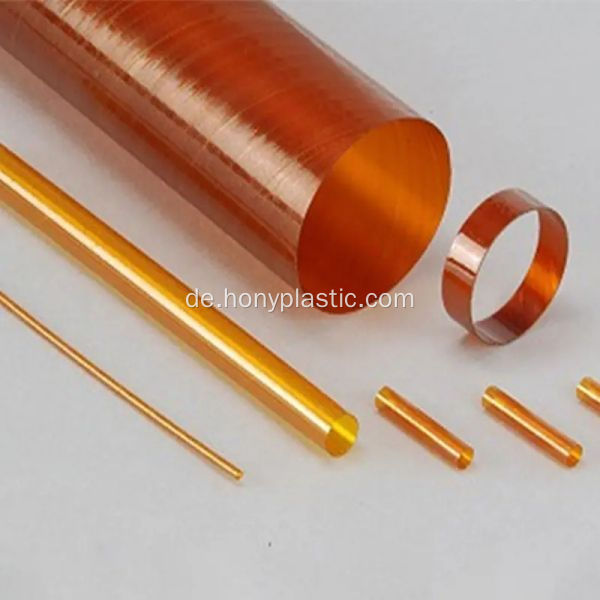

Medizinisches Polyimid -Pi -Hülsen -PI -Rohr
Holen Sie sich aktuelle PreisZahlungsart: | T/T,Paypal |
Incoterm: | CIF,CFR,FOB,EXW,DDU |
Minimum der Bestellmenge: | 1 Piece/Pieces |
Transport: | Ocean,Land,Air,Express |
Hafen: | Shenzhen,Guangzhou,Hongkong |
Zahlungsart: | T/T,Paypal |
Incoterm: | CIF,CFR,FOB,EXW,DDU |
Minimum der Bestellmenge: | 1 Piece/Pieces |
Transport: | Ocean,Land,Air,Express |
Hafen: | Shenzhen,Guangzhou,Hongkong |
Modell: HONYPLAS-PI
Marke: Honyplas
Verkaufseinheiten | : | Piece/Pieces |
Pakettyp | : | Exportpaket |

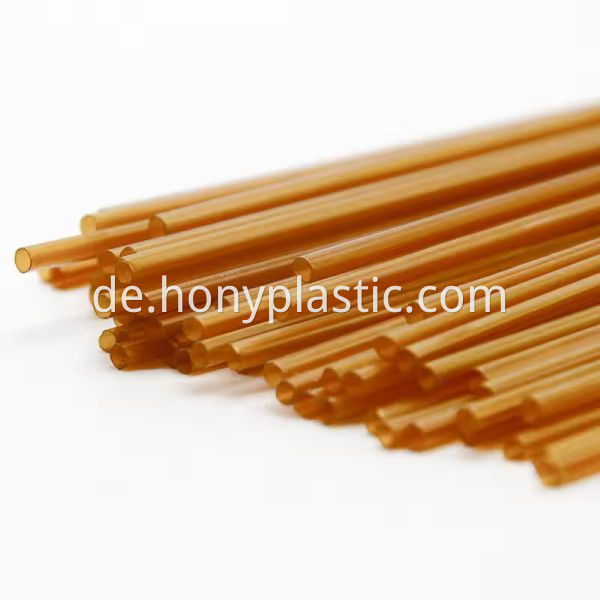

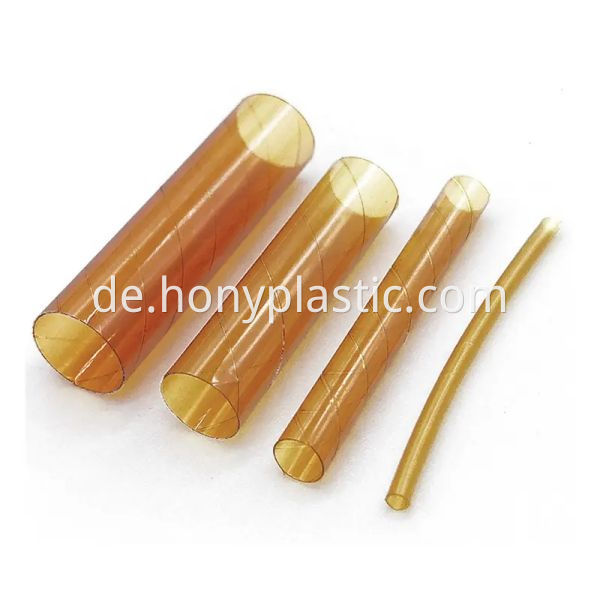

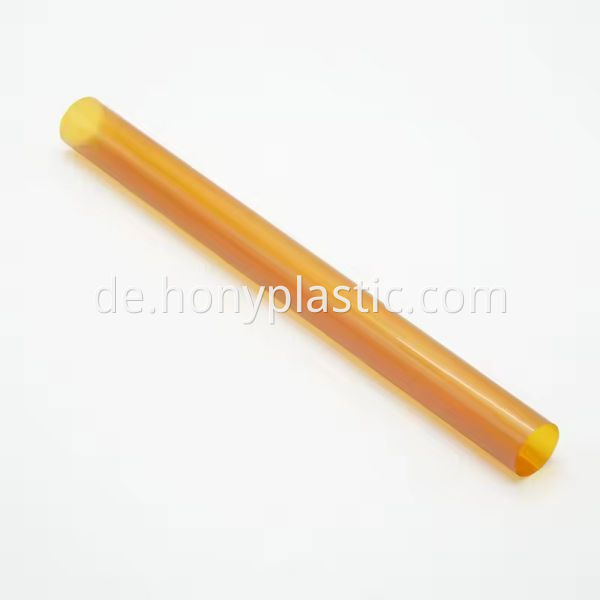

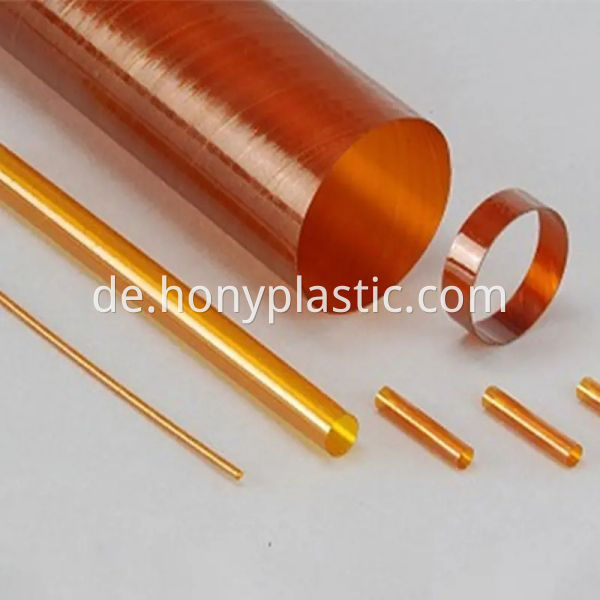

Polyimidrohre für medizinische Sensoren, hitzebeständige Hochdruckpolyimid, PI-Schlauch
Mikroschläuche mit Polyimidrohre (Kapton) umfassen: Überlegene Druckbarkeit und Traktabilität, Flexibilität, Tintenwiderstand und Säulenfestigkeit. Polyimid-Mikrobor-Schlauch ist ultra-glatt und chemisch inert.
Typische Anwendungen umfassen: Elektrikdrahtisolierung (für Sondentestgeräte), kardiovaskuläre Katheter, urologische Abrufgeräte, elektrische Anwendungen, Glasfaser, intravaskuläre Arzneimittelabgabe, Ballonangioplastik und Stentabgabe.
Dieser Polyimid -medizinische Schlauch wird ausgiebig auf dem Markt für medizinische Geräte eingesetzt. Polyimid -Schlauch überträgt das Drehmoment und ist transparent.
Technisches Datenblatt
Item name | Polyimide tubing,high-pressure polyimide, pi tubing |
Texture of material | Polyimide |
Heat resistant | 400℃(752℉) |
Tensile strength | Not less than 150MPa |
High temperature | 200℃-280℃ |
Operating temperature | -60℃-280℃ |
Electrolyte strength (voltage resistance) | 2500V/MH.25℃ 60 CYCLE |
2000v/MH.150℃ 6O CYCLE |
|
Water absorbency | 1%MAK.24Hr Immersion 25℃ |
Corrosion effect on copper | Negligibic |
Solubility in industrial solvents or dissolved substances such as acids, tinas, oils, paints, etc. | Insoluble |
Antibacterial, anti-corrosive | Good |
Toughness (folding, bending, tearing, etc.) | Good |
Flame retardancy | Slow to self-extinguishing |
Heat shrinkability | Less tnan 9% |
Epidermal strength | 400g/cm2(MIN) |
Insulation | 50Hz 2500v/min no breakdown |
Color | Transparent.Misty.Golden |
Other | The surface is bright, without burrs or pitting, and there are no impurities inside and outside the tube. |
Prozess: flache Spule, Spirale, Extrusion
Innendurchmesser: 0,2-25 mm
Länge: Regelmäßig einen Meter, anpassbar
Wandstärke: Flachrolle 0,05-0,2 mm; Spiral 0,06-0,25 mm
Drücken Sie 0,02-0,35 mm
Diameter/mm | Inside diameter/mm | Thickness/mm | Outside diameter/mm |
0.2 | 0.2±0.02 | 0.02/0.04±0.01 | 0.29 |
0.25 | 0.25±0.02 | 0.02/0.04±0.01 | 0.34 |
0.3 | 0.3±0.02 | 0.02/0.04±0.01 | 0.39 |
0.35 | 0. 35±0.02 | 0.02/0.04±0.01 | 0.44 |
0.4 | 0.4±0.02 | 0.03/0.06±0.01 | 0.48 |
0.45 | 0.45±0.02 | 0.03±0.02 | 0.51 |
0.5 | 0.5±0.02 | 0.03/0.06±0.02 | 0.63 |
0.6 | 0.6±0.02 | 0.03/0.06±0.02 | 0.72 |
0.7 | 0.7±0.02 | 0.03/0.06±0.02 | 0.83 |
0.75 | 0.75±0. 02 | 0.03±0.02 | 0.83 |
0.8 | 0.8±0.02 | 0.03/0.06卤0.02 | 0.92 |
0.85 | 0.85±0.02 | 0.03±0.02 | 0.95 |
0.9 | 0.9±0.02 | 0.06±0.02 | 1.03 |
1 | 1.0±0.02 | 0.04/0.06±0.02 | 1.13 |
1.1 | 1.1±0.02 | 0.06±0.02 | 1.23 |
1.2 | 1.2±0.02 | 0.03/0.06±0.02 | 1.33 |
1.3 | 1.3±0.02 | 0.06±0.02 | 1.43 |
1.5 | 1.5±0.02 | 0.06±0.02 | 1.63 |
1.6 | 1.6±0.02 | 0.06±0.02 | 1.73 |
2 | 2.0±0.02 | 0.06±0.02 | 2.13 |
2.5 | 2.5±0.02 | 0.06±0.02 | 2.63 |
3 | 3.0±0.02 | 0.06±0.02 | 3.12 |
Es wird hauptsächlich zum Isolationsschutz elektrischer Komponenten verwendet. Wie motorische thermische Beschützerisolierung, motorische emaillierte Drahtverbindungsisolierung. Es kann also in Schweißverbindungen, Verbindungen, Spulen, Transformatoren, Motoren, Drähten, elektrischen Heizelementen, Kondensatoren, Telefonrelais und anderer Temperaturisolierung und mechanischer Schutz aufgetragen werden.
